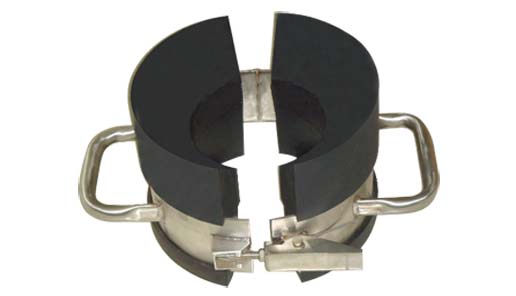

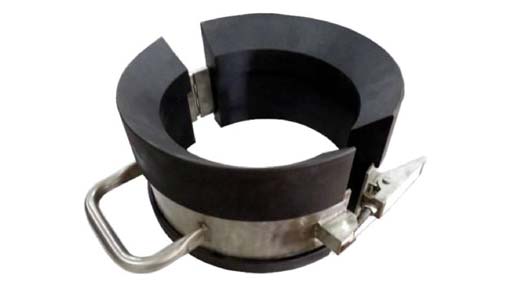

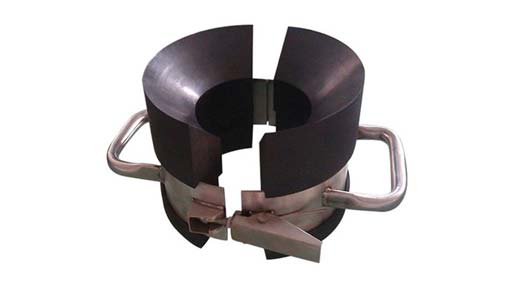

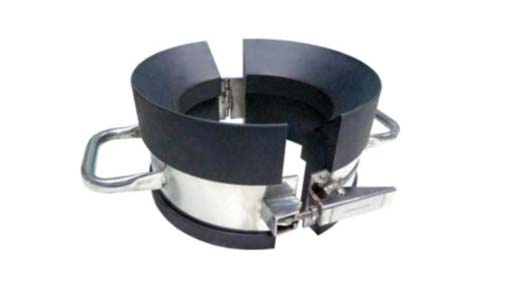

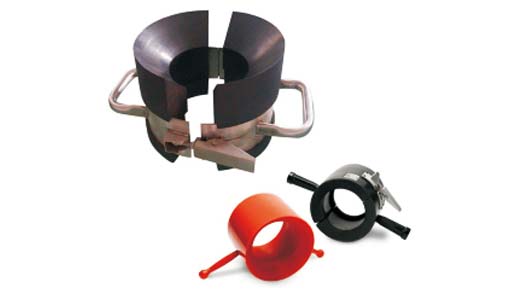

Stabbing Guide
- The stabbing guide is adaptable to the outside diameter of the new or worn coupling, through adjusting the length of latch screw.
- The stabbing guide has a relatively large guiding conical surface.
- The screw thread and coupling are not damaged with composite material used.
- The operation of latch lock is flexible and convenient.
- Nitrile rubber material or Nylon material is better material for long life operation.
- Techanical Specification
- Drawing
- Contact Us
Stabbing Guide
Stabbing guides are designed to prevent damage during make-up. It is manufactured from high-grade steel and Nitrile rubber material or Nylon material, It is easy to operate and can protect the screw thread of the pipes effectively. The guides are used available for tubing, casing and drill pipe.
| Model | Applicable Diameter of Tubulars (in) | Model | Applicable Diameter of Tubulars (in) |
| SG2-3/8T | 2-3/8 Tubing | SG 7-5/8 C | 7-5/8 Casing |
| SG2-7/8T | 2-7/8 Tubing | SG8-5/8C | 8-5/8 Casing |
| SG3-1/2T | 3-1/2 Tubing | SG9-5/8C | 9-5/8 Casing |
| SG4T | 4 Tubing | SG10-3/4C | 10-3/4 Casing |
| SG4-1/2T | 4-1/2 Tubing | SG11-3/4C | 11-3/4 Casing |
| SG4-1/2C | 4-1/2 Casing | SG13-3/8C | 13-3/8 Casing |
| SG5C | 5 Casing | SG13-5/8C | 13-5/8 Casing |
| SG5-1/2C | 5-1/2 Casing | SG14C | 14 Casing |
| SG6C | 6 Casing | SG16C | 16 Casing |
| SG6-5/8C | 6-5/8 Casing | SG18-5/8C | 18-5/8 Casing |
| SG7C | 7 Casing | SG20C | 20 Casing |
| Item | Name and description | Part No |
| 1 | Liner of corresponding | DKQ001 |
| 2 | The Body Left Lobe | DKQ002 |
| 3 | The Latch Screw | DKQ003 |
| 4 | The Adjusting Nut | DKQ004 |
| 5 | The Latch Lock | DKQ005 |
| 6 | The Spring | DKQ006 |
| 7 | Body Right Lobe | DKQ007 |
