Breakout Tong
- Manual oil pump is a small hydraulic pump station that converts manual mechanical energy into hydraulic pressure energy.
- It can perform various operations equiped with oil cylinders and special tools, ; such as lifting, bending, straightening, shearing, riveting, assembly, disassembly and some construction and military construction.
- The main features of the oil pump: manual power, high pressure, ultra-small model, easy to carry, simple to operate, and wide applications.
- Technical Specification
- Contact Us

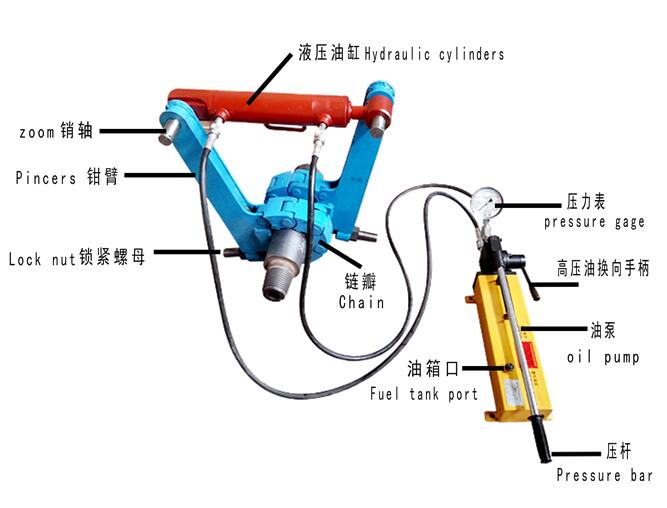

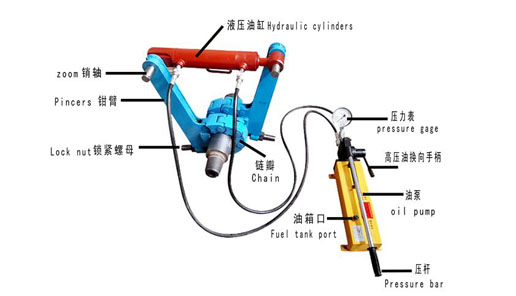

Instructions
1.The two clamp arms are installed on the male and female joints, and can rotate, the distance between the two arms is 78/67mm.
2.With the pin shaft fixed to the two ends of the retraction cylinder, the two locking nuts tighten.
3.After filling the fuel tank(two-thirds of the fuel tank), first install the pressure lever and pressure gauge on the oil pump as shown, and then use the tubing to connect the oil pump and the oil tank.
4.The high pressure oil to change the handle to set the cylinder out of position, repeatedly press down the pressure bar, the pressure gauge will show the pressure, the cylinder stem out, open the two clamp arms, the male and female buckle off.
Points for attention
- Oil pump horizontal placement;
- Pipeline cleaning is not leaked;
- To distinguish left from right;
- Qiawatiao is parallel to the axis;
- Lock nut tightening;
- According to the size of the clamping diameter, the number of kava flaps is increased or decreased.
