Casing Bushing and Insert Bowls
- Certified product with traceable part no.
- Load capacity from 200ton to 500ton.
- Quality assured with national best quality.
- Short on deliver time.
- Technical Specification
- Description
- Drawing
- Contact Us
| Rotary table size | Model | Casing Size(in) | Casing Bushing & Insert Bowl |
| 17 1/2 – 20 1/2 | CU | 2 3/8-8.5/8 | Bushing3102 + Insert Bowl 1809 |
| 9 5/8-10 3/4 | Bushing3102 + Insert Bowl 1902 | ||
| 11 3/4-13 3/8 | Bushing3102 | ||
| 27 1/2 | CUL | 2 3/8-8 5/8 | Bushing3103 + Insert Bowl 3105+1809 |
| 9 5/8-10 3/4 | Bushing3103 + Insert Bowl 3105+1902 | ||
| 11 3/4-13 3/8 | Bushing3103 + Insert Bowl 3105 | ||
| 16 | Bushing3103 + Insert Bowl 3104 | ||
| 18 5/8-20 | Bushing3103 | ||
| 27 1/2 | CB | 2 3/8-8 5/8 | Bushing6695 + Insert Bowl 6126A+6115 |
| 9 5/8-10 3/4 | Bushing6695 + Insert Bowl 6126A+6114 | ||
| 11 3/4-13 3/8 | Bushing6695 + Insert Bowl 6126A | ||
| 16 | Bushing6695 + Insert Bowl 6127 | ||
| 18 5/8-20 | Bushing6695 | ||
| 37 1/2 | 2 3/8-8 5/8 | Bushing(18.5/8-20in) + Insert Bowl 6126A+6115 | |
| 9 5 /8-10 3/4 | Bushing(18.5/8-20in) + Insert Bowl 6126A+6114 | ||
| 11 3/4-13 3/8 | Bushing(18.5/8-20in) + Insert Bowl 6126A | ||
| 16 | Bushing(18.5/8-20in) + Insert Bowl 6127 | ||
| 18 5/8-20 | Bushing(18.5/8-20in) | ||
| 24 | Bushing 11253 | ||
| 26 | Bushing 16454 | ||
| 30 | Bushing 11763 | ||
| Note: 1. Bushing(18.5/8-20in) contains CB10187,CB10188,CB10189,CB11553. | |||

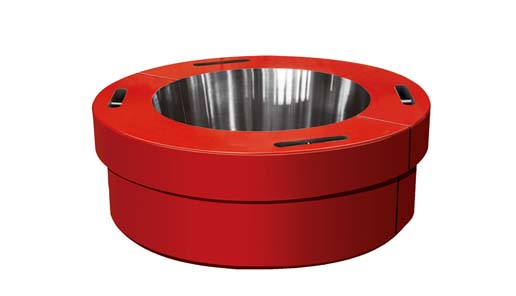

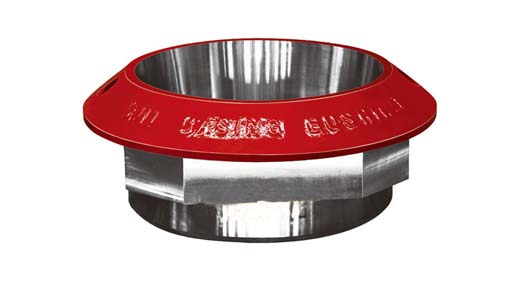

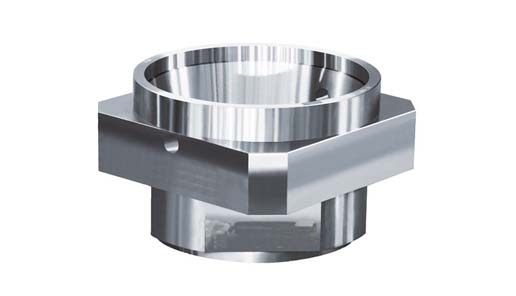

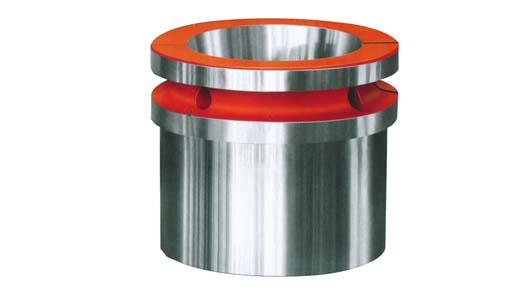

Casing bushing is combined by bushing body and insert bowls. It is suitable for handling casing less than 30 in. There are two types: solid and split. CU and CUL are solid bushing, and CB is split bushing. These series of rotary bushing are suitable for standard rotary slips, drill collar slips, casing slips,insert bowls and roller bushings, with two structures: solid body and split body. Two drive types are available: pin driven and square driven. It is designed and manufactured according to 7K “Specification for Drilling Equipment”.
6114 Insert Bowl Drawing
6126 Insert Bowl Drawing
CB 6695 Casing Bushing Drawing
Learn More When Inquiring
Buyer’s Guide

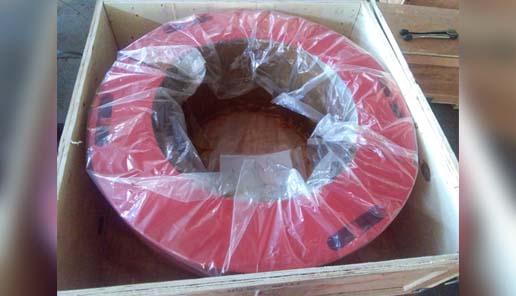

Please send us your inquiry with detail item description or with Model number. If there is no packing demand we take it as our regular exported standard packing. We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
