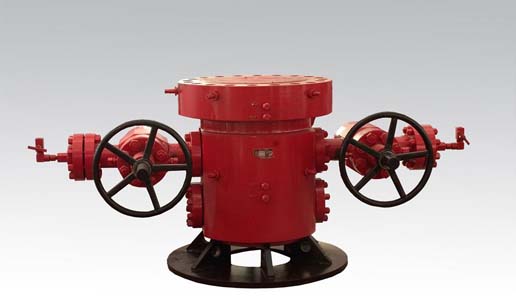

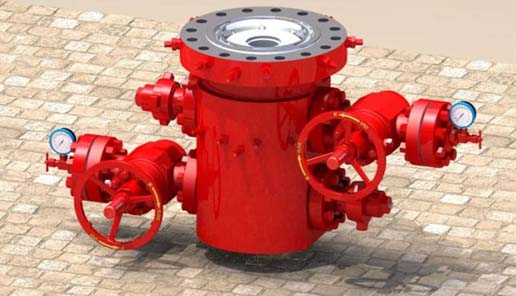

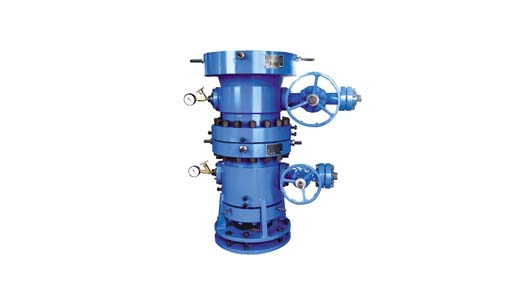

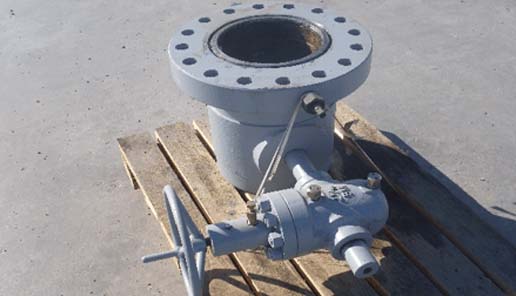

Casing Head
- Designed and manufactured according to 6A.
- Accepts a wide variety of slip and mandrel casing hangers.
- Three different types of outlets: Line pipe, Flanged (Studded) Extended flanged outlets.
- Multiple bottom connections, such as: Slip-on weld, Slip-on weld with O-ring, Threaded and Sure Lock.
- Lockdown screws in the top flange.
- Technical Specification
- More Details
- Structure
- Contact Us
Type: Thread type, slip type, welded type
Connected Casing O.D.: 7-5/8 ~ 13-3/8 in (193.7 ~ 339.7 mm)
Hanger Casing O.D.: 4-1/2 ~ 9-5/8 in (114.3 ~ 244.5 mm)
Working Pressure: 2000 ~ 20000 psi (14 ~ 140 MPa)
Vertical Bore: 178 ~ 12-1/2 in (178 ~ 318 mm)
Casing Head Assembly is the adapter between the first casing string and either the BOP stack or the wellhead. This adapter may be threaded or welded onto the casing, and may have a flanged or clamped connection to match the BOP stack or wellhead.
Learn More When Inquiring
Buyer’s Guide
Please send us your inquiry with detail item description or with Model number. If there is no packing demand we take it as our regular exported standard packing. We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
We can give you really high quality products with competitive price. We have a better understanding in Chinese market, with us your money will be safe.
Get Quick Response
Lake Petro is located in Dongying City, which is famous for Shengli Oilfield and the largest manufacturing hub of petroleum equipment in China. Following the principle of “quality first, science and technology innovated, people oriented”, every Lake Petro person is sparing no effort to provide the customers with best products and services. Our products are based on advanced production line and testing equipment, our products are designed and manufactured according to certification of ISO, GOST, etc.
