Cementing Hose
RIG ACCESSORIES
  • Drilling hose

Cementing Hose

  • Meets API 7k specifications.

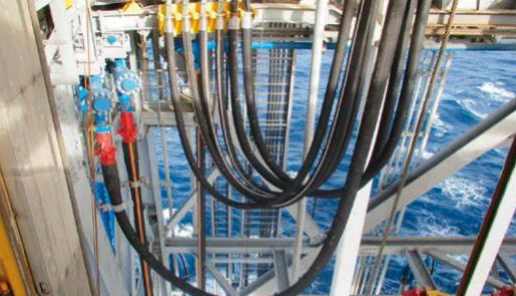

  • Cementing hose is often found as flexible connection between the cementing pump manifold and cementing head for conveyance of cement slurries at high pressure.

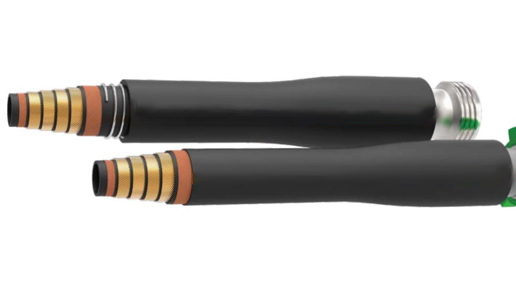

  • Made of inner sub or stainless steel armor inner tube ,carbon fiber reinforce sub, middle sub,steel wire reinforce sub and carbon fiber outer sub.

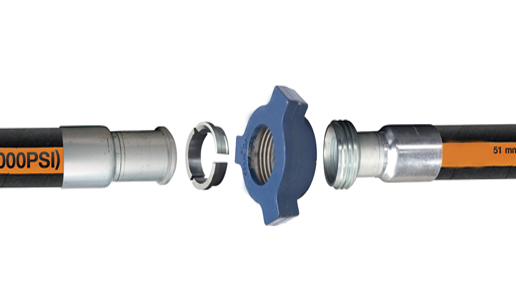

  • Cementing hose is supplied with a variety of end fittings including union, flanges and other special unions.
  • The product is classified into steel wire reinforcing type and steel link line reinforcing type.
Request a Quick Quote
  • Technical Specification
  • Description
  • Contact Us
Spec.inner dia.mm(in) 51 (2″) 64（2-1/2″)
Classes A B C D E F G A B C D E F G
Working pressure   Mpa（Psi） 11 14 28 35 52 70 105 11 14 28 35 52 70 105
1500 2000 4000 5000 7500 10000 15000 1500 2000 4000 5000 7500 10000 15000
Test pressure Mpa(Psi) 22 28 56 70 104 105 157.75 22 28 56 70 104 105 157.75
3000 4000 5000 10000 15000 15000 22500 3000 4000 8000 10000 15000 15000 22500
Min bending radius mm 800 800 850 850 900 950 1000 900 900 1000 1000 1050 1100 1150
Connector code TBG、LP、Union TBG、LP、Union
Spec.inner dia.mm(in) 76（3″) 89 (3-1/2″)
Classes A B C D E F G A B C D E F G
Working pressure   Mpa（Psi） 11 14 20 35 52 70 105 11 14 28 35 52 70 105
1500 2000 4000 5000 7500 10000 15000 1500 2000 4000 5000 7500 10000 15000
Test pressure Mpa(Psi) 22 28 56 70 104 105 157.75 22 28 56 70 104 105 157.75
3000 4000 8000 10000 15000 15000 22500 3000 4000 5000 10000 15000 15000 22500
Min bending radius mm 950 950 1050 1100 1150 1150 1150 1000 1000 1100 1100 1150 1150 1200
Connector code TBG、LP、Union TBG、LP、Union
Spec.inner dia.mm(in) 102（4″) 127（5″) 152（6″)
Classes A B C D E F A B C D A B C D
Working pressure   Mpa（Psi） 11 14 28 35 52 70 11 14 28 35 11 14 28 35
1500 2000 4000 5000 7500 10000 1500 2000 4000 5000 1500 2000 4000 5000
Test pressure Mpa(Psi) 22 28 56 70 104 105 22 28 56 70 22 28 56 70
3000 4000 8000 10000 15000 15000 3000 4000 8000 10000 3000 4000 8000 10000
Min bending radius mm 1050 1050 1100 1100 1150 1200 1200 1200 1300 1300 1300 1300 1400 1400
Connector code TBG、LP、Union LP、Union LP、Union

Cementing hose made according to API 7K spec, suitable for rotary hose for flexible connection between the top of the drilling riser and the vertically movable water faucet in the oil drilling and mud delivery systems,and for the adjustment of installing error between the drilling pump line and the riser for the connection and vibration isolation.It is also suitable for delivering in large quantity at high pressure the water-based or oil-based mud.
Moreover, it resists to corrosion from hydrogen sulfide and delivers water, oil,mud and other high-pressure media in borehole operation in oil field.
