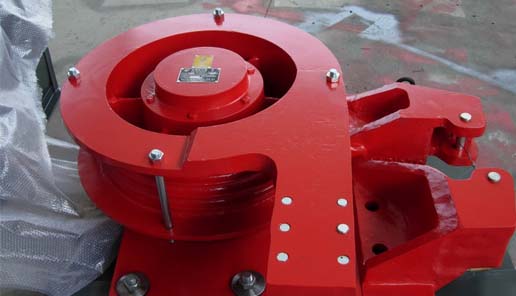

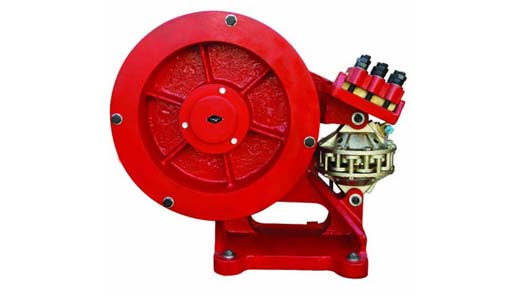

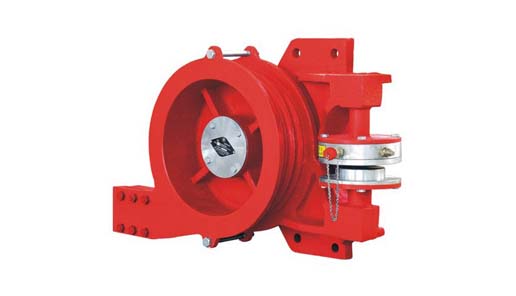

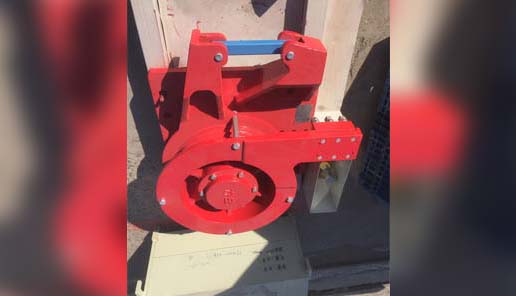

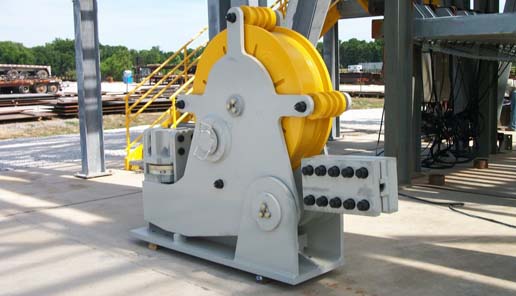

Deadline Anchor
- Can be used in drilling rig, workover drilling rig etc.
- Material is High strength steel, extended the service time.
- 1.5 times pressure and tensile test before leaving the factory, high precision, stability, etc.
- Two forms, horizontal and vertical.
- Technical Specification
- Description
- Drawing
- Contact Us
| Deadline Model | Weight indicator
Model |
Max. Deadline Pulling Force
(kN) |
Qty of the line | Capacity
(kN) |
Output pressure sensor
(MPa) |
|
|
Vertical |
JZG42 | JZ500 | 420 | 12 | 5040 | 6 |
| 10 | 4200 | |||||
| JZG35 | JZ400 | 350 | 12 | 4200 | ||
| 10 | 3500 | |||||
| JZG24 | JZ250 | 340 | 10 | 2880 | ||
| 8 | 2400 | |||||
| JZG20 | JZ200 | 200 | 10 | 2000 | ||
| 8 | 1600 | |||||
| JZG18A | JZ150A | 180 | 10 | 1800 | ||
| 8 | 1440 | |||||
| 6 | 1080 | |||||
| JZG15A | JZ100A | 150 | 6 | 1200 | ||
| 4 | 900 | |||||
|
Horizontal |
JZG41 | JZ500A | 410 | 12 | 4920 | 6.83 |
| 10 | 4100 | |||||
| JZG34A | JZ400B | 340 | 12 | 4080 | 6 | |
| 10 | 3400 | |||||
| JZG18 | JZ150 | 180 | 8 | 1440 | ||
| 6 | 1080 | |||||
| JZG15 | JZ100 | 150 | 8 | 1200 | ||
| 6 | 900 | |||||
| JZG10A | JZ40 | 100 | 6 | 600 | ||
| 4 | 400 | |||||
| We can designed as your request. | ||||||
Deadline anchor is used as a display instrument for indicating and recording the drilling string changes in weight and pressure, helping the driller to master the working parameter and judge the drilling state in drilling operation. It’s mainly composed two parts: Body and Senor. It work together with the Weight indictor.
Learn More When Inquiring
Buyer’s Guide
Please send us your inquiry with detail item description or with Model number. If there is no packing demand we take it as our regular exported standard packing. We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
We can give you really high quality products with competitive price. We have a better understanding in Chinese market, with us your money will be safe.
