Elevator
- 100% NDT test for critical parts for elevator
- Hydraulic test according to 8C.
- Load capacity from 150ton to 500ton
- Easy to operation while drilling, spare parts is available after sales.
- Third party inspection is also available after sales.
- Center Latch Elevator
- Side Door Elevator
- Single Joint Elevator
- Slip Type Elevator
- Contact Us
Please check above buttons for more type ↑↑↑

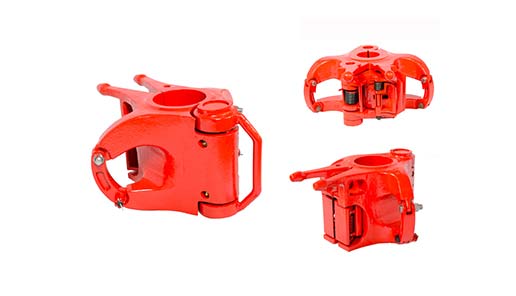

Center Latch Elevator
Lake Petro provides Center Latch Elevators with square shoulder type and 18° bottleneck type. All of our elevators are designed and manufactured according to 8A/8C spec.
Square shoulder elevators of center latch type are called DD model, the load ranges from 150 tons to 350 tons and the size ranges from 2-3/8″ to 5-1/2″.
18° bottleneck elevators of center latch type are called DDZ model, which has an 18-degree taper shoulder. The Load ranges from 100 tons to 750 tons and the size ranges from 2-3/8″ to 6-5/8″.
The detailed parameters are shown in the table below.
Square shoulder center latch elevator:
| Model | Size (in) | Rated Capacity (Short Tons) |
||
| Drill Pipe | Casing | Tubing | ||
| DD-100 | 2.3/8-5.1/2 | 4.1/2-5.1/2 | 2.3/8-4.1/2 | 150 |
| DD-250 | 2.3/8-5.1/2 | 4.1/2-5.1/2 | 2.3/8-4.1/2 | 250 |
| DD-350 | 2.3/8-5.1/2 | 4.1/2-5.1/2 | 2.3/8-4.1/2 | 350 |
18° bottleneck center latch elevator:
| Model | Size (in) | Rated Capacity (short ton) | Remark | |
| DDZ-100 | 2.3/8-5 | 100 | MG | |
| DDZ-150 | 2.3/8-5.1/2 | 150 | RG | |
| DDZ-250 | 2.3/8-5.1/2 | 250 | MGG | |
| DDZ-350 | 3.1/2-5.7/8 | 350 | GG | |
| DDZ-350TD | 3.1/2-5.7/8 | 350 | for Top Drive | |
| DDZ-500 | 3.1/2-6.5/8 | 500 | HGG | |
| DDZ-500TD | 3.1/2-6.5/8 | 500 | for Top Drive | |
| DDZ-750 | 4-6.5/8 | 750 | ||

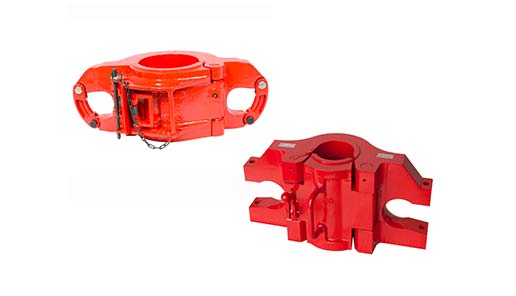

Side Door Elevator
Lake Petro provides Side Door Elevators with square shoulder type and 18° bottleneck type. All of our elevators are designed and manufactured according to 8A/8C spec.
Square shoulder elevators of side door type are called CD model, the load ranges from 150 tons to 750 tons and the size ranges from 2-3/8″ to 20″.
18° bottleneck elevators of side door type are called CDZ model, which has an 18-degree taper shoulder. The Load ranges from 100 tons to 500 tons and the size ranges from 2-3/8″ to 5-1/2″.
The detailed parameters are shown in the table below.
Square shoulder side door elevator:
|
Model |
（in）Size |
Rated Cap. （short tons） |
|
CD-150 |
2-3/8″~14″ | 150 |
| CD-200 | 2-3/8″~14″ |
200 |
|
CD-250 |
2-3/8″~20″ | 250 |
| CD-350 | 4-1/2″~20″ |
350 |
|
CD-500 |
4-1/2″~14″ | 500 |
| CD-750 | 4-1/2″~9-7/8″ |
750 |
18° bottleneck side door elevator:
|
Model |
（in）Size | Rated Cap.
（short tons） |
| CDZ-150 | 2-3/8″~5-1/2″ |
150 |
|
CDZ-250 |
2-3/8″~5-1/2″ | 250 |
| CDZ-350 | 2-7/8″~5-1/2″ |
350 |
|
CDZ-500 |
3-1/2″~5-1/2″ |
500 |

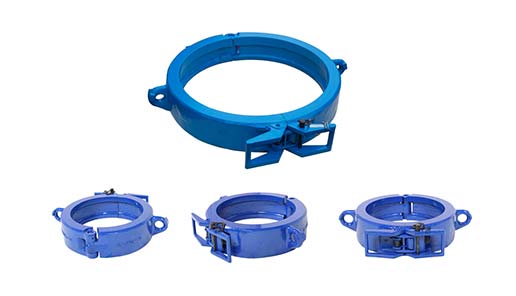

Single Joint Elevator
Single Joint Elevator also called Auxiliary Elevator. Lake Petro provides Single Joint Elevator with SJ type, SP type and SJX type. All of these elevators are designed and manufactured according to 8A/8C spec.
SJ auxiliary elevators are mainly used in handling single casings or tubings in oil drilling natural gas drilling and cementing operation.
|
SJ Auxiliary Elevator Size |
Rated Cap.(kN) | |
| in |
mm |
|
|
2-3/8″~2-7/8″ |
60.3~73.03 | 45 |
| 3-1/2″~4-3/4″ |
88.9~120.7 |
|
|
5″~5-3/4″ |
127~146.1 | |
| 6″~7-3/4″ |
152.4~193.7 |
|
|
8-5/8″~10-3/4″ |
219.1~273.1 | |
| 11-3/4″~13-3/8″ |
298.5~339.7 |
|
|
13-5/8″~14″ |
346.1~355.6 | |
| 16″~20″ |
406.4~508.0 |
|
|
21-1/2″~24-1/2″ |
546.1~622.3 | 60 |
|
26″~28″ |
660.4~711.2 |
|
| 30″~36″ |
762.0~914.4 |
|
SP auxiliary elevators are mainly used in handling single tubings, casings and drill pipes with taper shoulder.
|
Model |
Size
(in) |
Rated Cap.
(short Tons) |
| SP50 | 2-3/8″~10-3/4″ |
5 |
|
SP120 |
2-3/8″~4-1/2″ | |
| SP180 |
2-7/8″~6-5/8″ |
SLX auxiliary elevators are hoisting tools for handling single pipes or working together with the professional tools CRT to move the tubulars from gate to well centre.
|
Model |
Size
(in) |
Rated Cap. (short Tons) |
|
SJX-5 |
2-3/8″~4-1/2″ | 5 |
| SJX-5 |
4-1/2″~7″ |
|
|
SJX-5 |
7″~10″ | |
| SJX-5 |
10″~14″ |

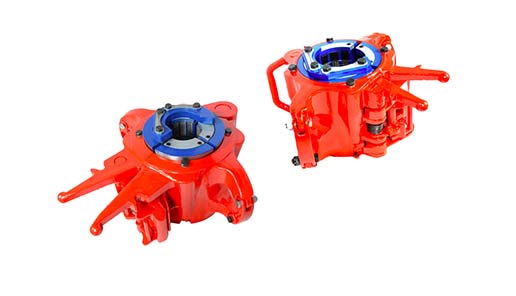

Slip Type Elevator
The slip type elevators are indispensable tools in handling and hoisting drill pipes, casings and tubing in oil drilling and well tripping operation. It’s especially suitable for hoisting integrated tubing sub, integral joint casing and electric submersible pump column. Slip type elevators are also known as Y series elevators, they are designed and manufactured according to 8A/8C spec.
|
Model |
Size | Rated Cap. | |
| mm (in) | kN |
short Tons |
|
|
HYT |
60.3~88.9 (2-3/8″~3-1/2″) | 1350 | 150 |
| YT | 33.4~88.9 (1.315″~3-1/2″) | 675 |
75 |
|
MYT |
33.4~73 (1.315″~2-7/8″) | 360 | 40 |
| LYT | 26.7~52.4 (1.05″~1-1/16″) | 180 |
20 |
|
HYC |
88.9~139.7 (3-1/2″~7-5/8″) | 1800 | 200 |
| MYC | 88.9~117.8 (3-1/2″~7″) | 1125 |
125 |
|
YC |
88.9~117.8 (3-1/2″~7″) | 675 |
75 |
