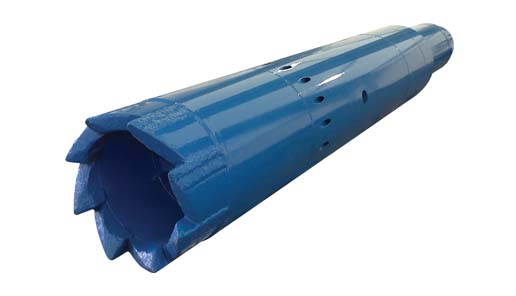

Junk Basket
- A lifting sub is provided for ease of handling which includes a storage space for the steel ball used in the operation of the tool.
- A single junk catcher is used in each assembly.
- Itco Junk Basket may be easily converted to a fishing magnet by replacing the catchers with magnet insert.
- Alternate Mill Shoes available are Type B and Type C.
- Technical Specification
- Description

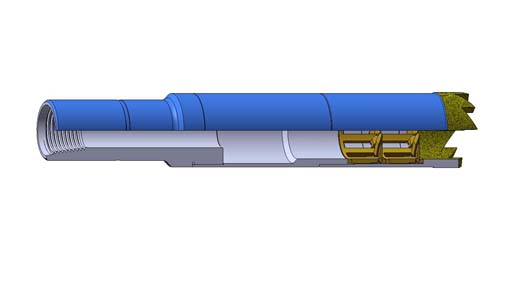

- Drawing
- Contact Us
- ITCO Junk Basket
| Type | OD
mm（inch） |
Connection
API |
Well bore range
mm（inch） |
OAL
mm（inch） |
| LL-P146 | 151（5-15/16） | NC38 | 155.6～165.1(6-1/8～6-1/2) | 1376(54-11/64) |
| LL-P200 | 205（8-5/64） | NC50 | 212.7～241.3（8-3/8～9-1/2） | 1766（69-17/32） |
| LL-P257 | 257（10-1/8） | 6-5/8REG | 273～295.3（10-3/4～11-5/8） | 1770（69-11/16） |
| LL-P280 | 286(11-1/4) | 6-5/8REG | 298.5～311.2(11-3/4～12-1/4) | 1846（72-43/64） |
| LL-P381 | 381（15） | 7-5/8REG | 406.4～444.5(16～17-1/2) | 1780（70-5/64） |

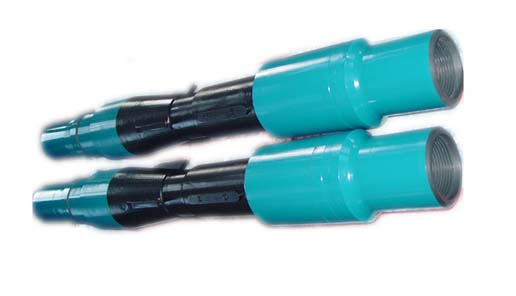

- Reserve Circulation Junk Basket
| type | Body OD
mm（inch） |
Mill shoe OD
mm（inch） |
Max. fishing
mm（inch） |
Steel ball OD
mm（inch） |
Hole size Range
mm（inch） |
Connection |
| LL102 | 102
(4) |
108
(4-1/4) |
66
(2-10/16) |
32
(1-1/4) |
107~114.3 | NC26 |
| LL114 | 114
(4-1/2) |
120
(4-3/4) |
80
(3-2/16) |
32
(1-1/4) |
117.5~127 | 2-7/8REG |
| LL121 | 121
(4-3/4) |
127
(5) |
80
(3-2/16) |
32
(1-1/4) |
130~139.7 | 3-1/2REG |
| LL130 | 130
(5-1/8) |
135
(5-5/16) |
89
(3-8/16) |
32
(1-1/4) |
155.6~165. | NC31 |
| LL146 | 146
(5-3/4) |
151
(5-15/16) |
108
(4-4/16) |
35
(1-3/8) |
155.6~165.1 | NC38 |
| LL165 | 165
(6-1/2) |
171
(6-3/4) |
124
(4-14/16) |
40
(1-9/16) |
212.7~241.3 | 4-1/2REG |
| LL178 | 178
(7) |
184
(7-1/4) |
131
(5-3/16) |
43
(1-11/16) |
212.7~241.3 | NC50 |
| LL200 | 200
(7-7/8) |
205
(8-1/16) |
157
(6-3/16) |
43
(1-1/16) |
212.7~241.3 | NC50 |
| LL232 | 232
(9-1/8) |
237
(9-5/16) |
179
(7-1/16) |
48
(1-57/64) |
273~295.3 | 6-5/8REG |
| LL257 | 257
(10-1/8) |
263
(10-3/8) |
200
(7-14/16) |
48
(1-57/64) |
273~295.3 | 6-5/8REG |
| LL286 | 286
(11-1/4) |
291
(11-7/16) |
220
(8-11/16) |
48
(1-57/64) |
298.5~311.2 | 6-5/8REG |
| LL350 | 350
(13-1/8) |
356
(14) |
285
(11-4/16) |
60
(2-23/64) |
406.4~444.5 | 6-5/8REG |
| LL381 | 381
(15) |
400
(15-3/4) |
315
(12-6/16) |
60
(2-23/64) |
406.4~444.5 | 7-5/8REG |

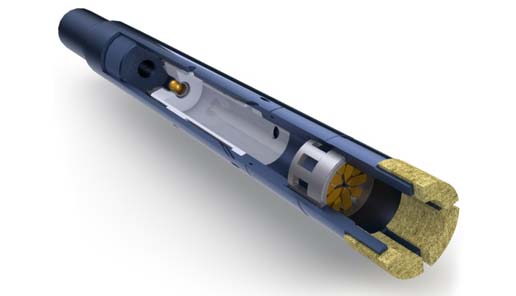

Junk Basket is a fishing tool which use the drilling fluid partly reverse in the bottom hole, to latch small junk in the basket. It is used for fishing all types of small junk, objects in well bores, such as bit cones, cutting blades and hand tools, etc. There are two types: ITCO Junk Basket and Reserve Circulation Junk Basket.
