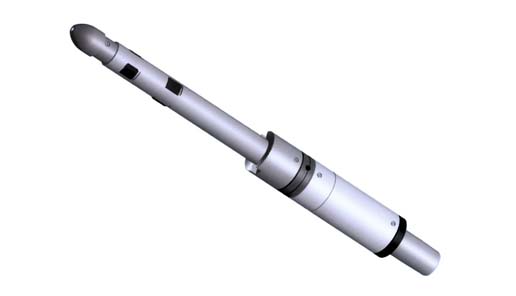

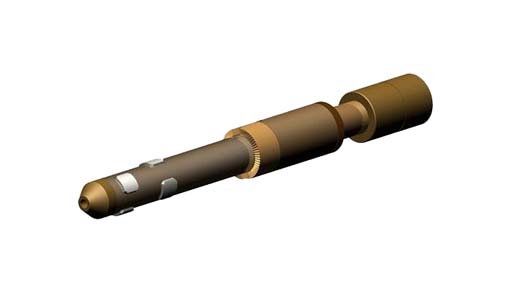

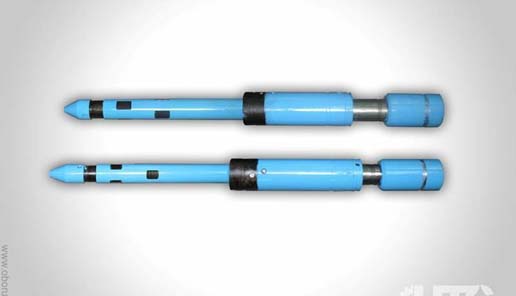

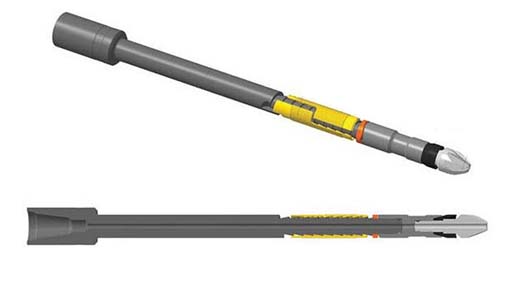

Overshot
- There are two types of Overshots: Short Catch Overshot, Releasing and Circulating Overshot.
- Connection made by API 5DP, API 5B and GOST.
- Short Catch Overshot is used for catching short length fish which the stuck point is closed or above the coupling, such as tubing, drill pipe, sucker rod and subs.
- Releasing and Circulating Overshot can fish the pipes externally. It can catch drill collar, drill pipe, tubing, subs and other pipes.
- Technical Specification
- Description
- Drawing
- Contact Us
Specification of the Short Catch Overshot
| Type | Outside diameter
O.D. mm（in） |
Salvage range
mm |
Connection | Hole diameter
mm |
Tension |
| DYLT95 | 95（3-3/4） | 47～49 | NC26 | 114.3-120.8 | 450 |
| DYLT105 | 104.8（4-1/8） | 59.7～61.3 | NC31 | 127-139.7 | 500 |
| DYLT114 | 114（4-1/2） | 72～74.5 | NC31 | 139.7-146 | 500 |
| DYLT135 | 135（5-5/16） | 87.9～90.6 | NC31 | 159.6-168 | 600 |
| DYLT146 | 146（5-3/4） | 100.4～103.2 | NC38 | 168-178 | 630 |
| DYLT206 | 206（8-1/8） | 165～170 | NC50 | 224～228 | 1018 |
Specification of Releasing and Circulating Overshot
|
Type |
O.D. of overshot mm（inch）
|
MAX. fish dimension
mm（inch） |
Connection |
|
| Spire slip mm（inch） | Basket slip
mm（inch） |
|||
| T-T324 | 324（12-3/4） | 282.6(11-1/8） | 266.7（10-1/2） | 6-5/8REG |
| LT-T298 | 298（11-3/4） | 257.2（10-1/8） | 228.6（9） | 6-5/8REG |
| LT-T270 | 270（10-5/8） | 228.6（9） | 203.2（8） | 6-5/8REG |
| LT-T206 | 206（8-1/8） | 177.8（7） | 159（6-1/4） | NC50 |
| LT-T200 | 200（7-7/8） | 171.5（6-3/4） | 155.6（6-1/8） | NC50 |
| LT-T146 | 146（5-3/4） | 117.5（4-5/8） | 108（4-1/4） | NC38 |
| LT-T143 | 146（5-5/8） | 120.7（4-3/4） | 108（4-1/4） | NC38 |
| LT-T102 | 102（4） | 77.8（3-1/16） | 65（2-9/16） | NC26 |
Overshot is a downhole tool used in fishing operations to engage on the outside surface of a tube or tool. A grapple, or similar slip mechanism, on the overshot grips the fish, allowing the application of tensile force and jarring action. If the fish cannot be removed, a release system within the Overshot allows the overshot to be disengaged and retrieved.
