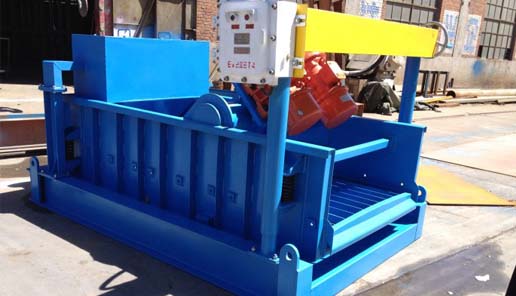

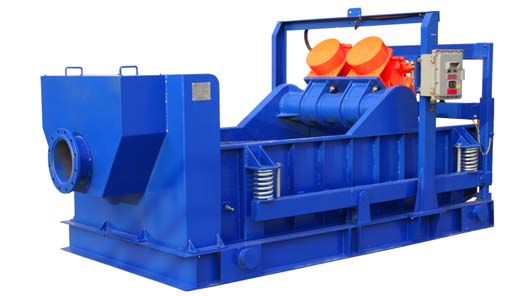

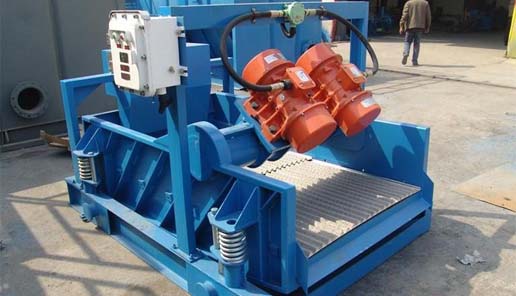

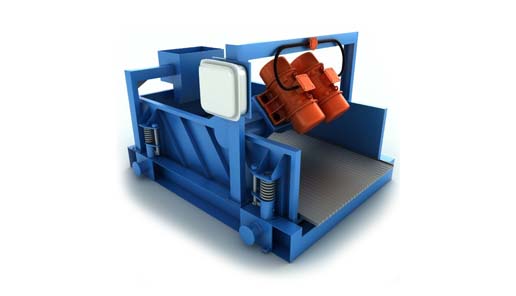

Shale Shaker
- Ajustable High G force for primary solids control or cuttings drying.
- Heat treatment on complete shale shaker deck.
- Vibrating Motor: IEC Ex, ATEX and UL Certified.
- Electrical components: SIEMENS, Schneider Brand.
- Shale Shaker Bottom Deck Material: Stainless Steel.
- Wedge type design for easy and quick screen replacement.
- Electric Shaker Deck angle adjustable while working.
- Technical Specification
- More Details
- Drawing
- Contact Us
| Model | LK-200 | LK-528 | LK-616 |
| Vibration Mode | Linear Motion | ||
| Capacity | 45m3/h(200GPM) | 120m3/h(528GPM) | 140m3/h(616GPM) |
| Vibration Motor | 2×0.75Kw | 2×1.72Kw | 2×1.94Kw |
| Screen Qty | 2pcs | 3pcs | 4pcs |
| Screen Size: L×W | 750×900mm | 700×1250mm | 585×1165mm |
| Screen Area | 1.35m2 | 2.63m2 | 2.73m2 |
| Adjustable G Force | ≤7.1G | ≤7.5G | ≤8.0G |
| Vibration Amplitude | 3.92~5.62mm | 4.14~5.96mm | 4.4~6.34mm |
| Deck Angle Range | +2° | -1°~+5° (Adjustable) | |
| Feeding Type | Box Feeder | Box Feeder | Hopper Feeder |
| Weir Height | 710mm | 1042mm | |
| EX Standard | ExdIIBt4 / IEC EX/ ATEX | ||
| Weight (Kg) | 893 | 1742 | 1638 |
| Dimension: L×W×H(mm) | 1676×1689×1062 | 2419×2055×1474 | 2761×1998×1428 |

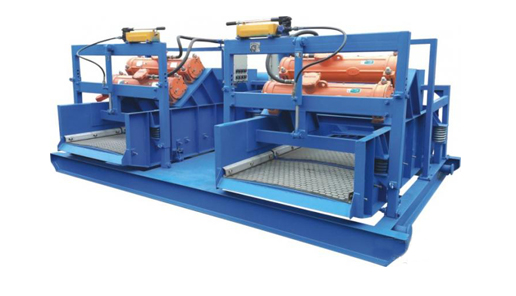

Shale Shaker is the first stage solids control equipment in drilling fluids recycling system; it is also the most important equipment. To a large extent, the performance of shale shaker decides the working efficiencies of whole solids control system. Besides single shale shaker, Lake Petro also could offer tandem shakers and triplicate shakers on single skid according to customers’ requirements and also the connecting manifold and mud distributor. Lake Petro provides the most popular type Linear Motion shale shaker.
