Sucker Rod Guide
- Centralizing the sucker rods in the tubing string.
- Reduce the friction between the rod and the pipe.
- Raises the overall pumping efficiency.

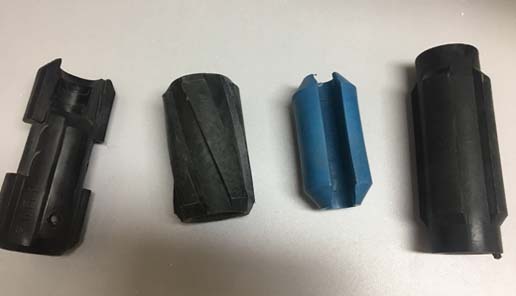

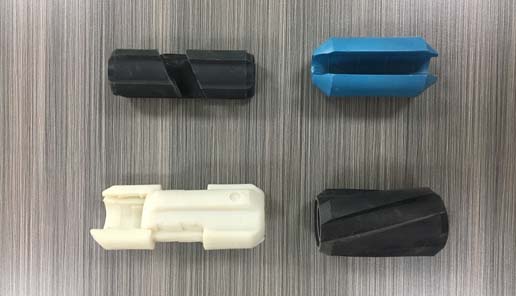

- Available in both snap-on and twist-on and roller rod guide versions.
- Technical Specification
- More Details
- Drawing
- Contact Us
| APPLICATION | MAXIMUM ROD LOAD | DIMENSIONS A(INCH) | DIMENSIONS B(INCH) | DIMENSIONS C(INCH) | WEIGHT |
| 2058P 5/8″ Rod / 2-3/8″ Tubing | 19,600 | 1.5 | 27 | 1.8 | 10lbs |
| 2034P 3/4″ Rod / 2-3/8″ Tubing | 19,660 | 1.5 | 27 | 1.8 | 10lbs |
| 2558P 5/8″ Rod / 2-7/8″ Tubing | 19,600 | 1.5 | 27 | 2.25 | 10lbs 2oz |
| 2534P 3/4″ Rod / 2-7/8″ Tubing | 19,600 | 1.5 | 27 | 2.25 | 10lbs |
| 2578P 7/8″ Rod / 2-7/8″ Tubing | 22,400 | 1.625 | 27 | 2.25 | 11lbs 5oz |
| 3034P 3/4″ Rod / 3-1/2″ Tubing | 19,600 | 1.5 | 29 | 2.75 | 12lbs 6oz |
| 3078P 7/8″ Rod / 3-1/2″ Tubing | 22,400 | 1.75 | 29 | 2.75 | 15lbs |
| 3010P 1″ Rod / 3-1/2″ Tubing | 35,000 | 2 | 29 | 2.75 | 19lbs |
Sucker rod guide is a downhole tool for preventing eccentric wear of pumping Wells, which is suitable for pumping Wells with eccentric wear, especially for pumping Wells with eccentric wear above the neutral point of sucker rod and directional inclined Wells, and for those with eccentric wear below the neutral point of sucker rod and the nylon centralizer on the sucker rod body for better effect of eccentric wear prevention.
Sucker rod centralizer has strong flexibility, it is in contact with the inner wall of the oil pipe, can reduce the friction between the rod and the pipe, enhance the oil extraction life of the pumping unit.
