Sucker Rod Tools
Handling Tools

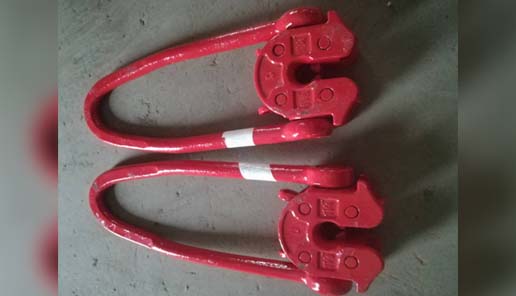

Sucker Rod Elevator

Sucker Rod Elevator

Features of Sucker Rod Elevator:

  • Available 25ton load capacity.
  • Available solid body or plate-type style.
  • Available in a size range of 5/8” ~ 1-1/2”.
  • Strictly tested according to API.
  • Made from high-quality heat-treated alloy.

Sucker rod elevators are manufactured and tested according to API Spec 8C. These elevators are made from high-quality heat-treated alloy steel for strength and durability and the rated load ability is 25 tons. It is used for hosting the drilling and production equipment.

Technical Parameters of Sucker rod Elevator:

Model Applicable for Diameter of Tubular(inch) Rated Capacity(Ton)
SRE20 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2, 20
SRE25 5/8, 3/4, 7/8, 1 25

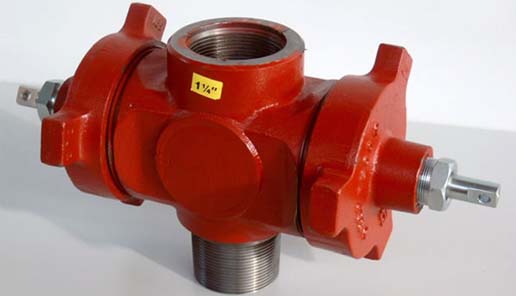

Sucker Rod BOP

Sucker Rod BOP

Features of Sucker Rod BOP:

  • The working pressure: 1500PSI to 5000PSI.
  • Suitable for sucker rod specifications: 5/8″~1 1/2″.
  • Easy to operation while drilling.
  • API certified product, quality can be assured.
  • Short delivery time.

Sucker rod BOP is used to prevent the oil and gas from leaking and ensure the washing wells and etc, its max working pressure is 1500psi and it is used for 1/2″ to 1-1/8″ sucker rod.

Technical Parameters of Sucker rod BOP:

Max. Working Pressure: 10.5MPa (1,500PSI)

Suitable Sucker Rod: 5/8-1.1/8 (16-29mm)

Upper and Lower Thread Joint: 3.1/2 UP TBG

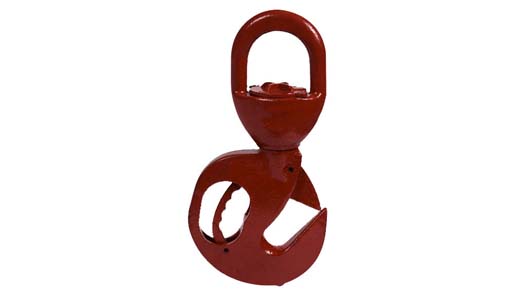

Sucker Rod Hook

Sucker Rod Hook

Features of Sucker Rod Hook:

  • API certified handling tools for well drilling.
  • Load capacity from 20ton to 35ton.
  • Easy for operation for safety use.
  • Short on delivery.
  • Quality assured with the national best standard.

Sucker rod hook is one of the hosting equipment for sucker rod. It is suitable for all depth and operating conditions complete with single-hand latch construction and safety ring. It is safe and dependably enough. The sucker rod hook is designed and manufacture for API 8A and 8C for drilling and production hoisting equipment.

Technical Parameters of Sucker Rod Hook:

Model Rated Capacity (short ton ) Length
RH20 20 ton 488 mm
RH25 25 ton 494 mm
RH25L 25 ton 798 mm
RH35 35 ton 960 mm

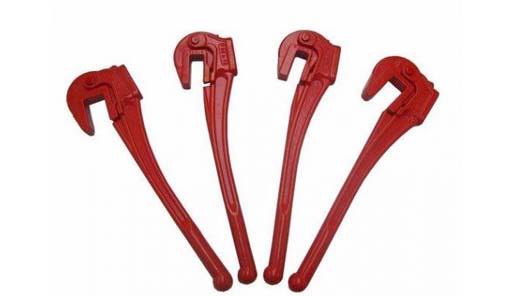

Sucker Rod Wrench

Sucker Rod Wrench

Features of Sucker Rod Wrench:

  • Sucker Rod Wrench is available in different sizes.
  • National best quality with API certified.
  • Short delivery time.
  • Made from heat-treated alloy steel.
  • Easy to operation.

The Sucker Rod Wrenches are made of heat-treated alloy steel, to quickly break the toughest sucker rod or coupling joint. The opening is applicable to square the shape of the steel-made sucker rod. The balances designed of the wrench can reduce the fatigue of users, which is an outstanding tool for manual mounting and demounting the sucker rod.

Technical Parameters of Sucker Rod Wrench:

Size: 5/8 in, 3/4 in, 7/8 in, 7/8 HY, 1 in, 1-1/8 in
