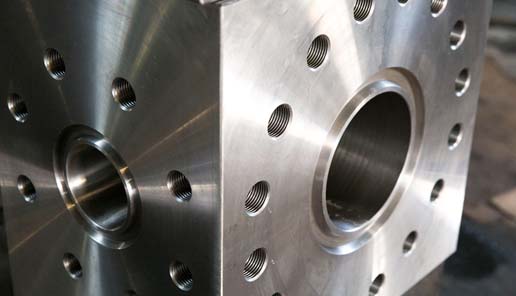

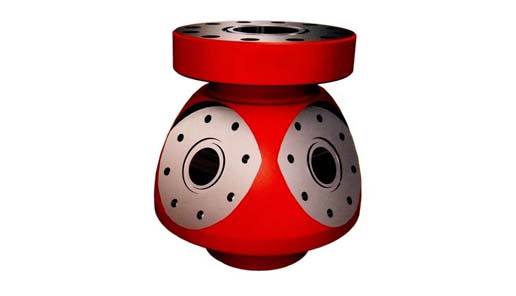

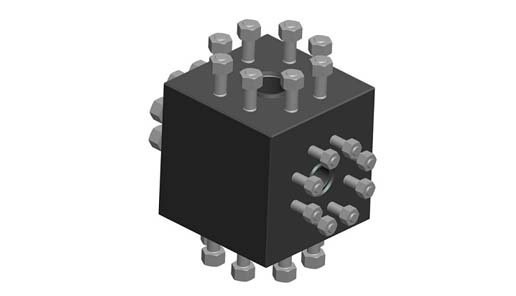

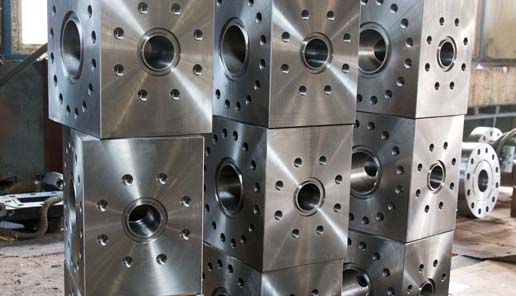

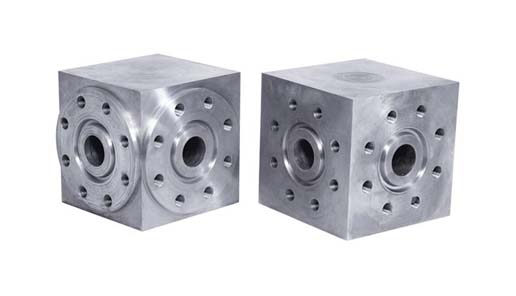

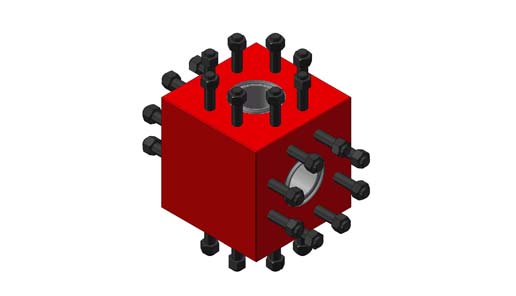

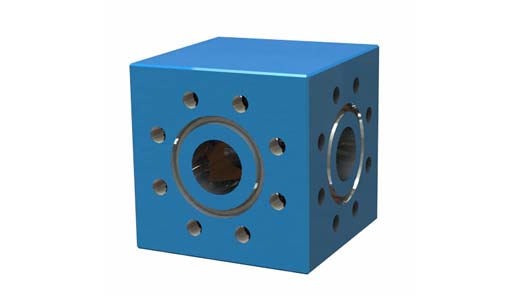

Tee & Cross
- The basic material is usually AISI 4130 Alloy Steel or AISI410 Stainless Steel.
- Overlays like SS 316L or Inconel 625 on ring groove can be incorporated for corrosion resistance.
- Studded/Flanged crosses and tees shall undergo hydrostatic body test and drift test as per API 6A standards prior to delivery.
- Custom sizes and specifications are available upon request.
- Simple structure with reliable performance.
- Technical Specification
- More Details
- Contact Us
Standard Carried: API Spec 6A, NACE-MR0175
Nominal Bore: 2 1/16 in, 2 9/16 in, 3 1/8 in, 3 1/16 in, 4 1/16 in
Rated Working Pressure: 2000 psi ~ 20000 psi (14Mpa ~ 140Mpa)
Material Class: AA, BB, CC, DD, EE, FF
Material: AISI4130 Alloy or AISI410 Stainless Steel
Connection Type: Flanged or Studded
Temp Class: L, P, R, S, T, U, V
Product Specification Level: PSL1 – PSL4
Performance Requirement: PR1, PR2
Application: Wellhead Assembly & Christmas Tree
Studded Tees and Crosses are very important components for Wellhead Assembly Christmas Tree. They are assembled on the X-mas Tree where an angled connection is required. They are made from solid metal block. Boundary Dimensions – Bore and centerline-to-face dimension shall conform to API 6A standards. Common configurations include 4 way, 5 way, and 6 way crosses along with ells and tees with pressure ratings from 2,000 to 20,000 psi.
