Vacuum Degasser
- Desilter Options with shaker and without shaker for flexible application.
- Desilter cones with PU material with better Abrasion resistance.
- No under shaker design structure compact and assembly flexible.
- Mini desilter cleaner with shaker for both weighted / unweighted mud in various drilling.
- Technical Specification
- More Details
- Drawing
- Contact Us
| Model | LKVD1188 | LKVD1584 |
| Main diameter | 920mm | |
| Capacity | ≤270 m3/h (1188GPM) | ≤360 m3/h (1584GPM) |
| Vacuum Degree | -0.02~-0.04 Mpa | |
| Handling Efficiency | ≥95% | |
| Main Motor Power | 22Kw (30HP) | 37Kw (50HP) |
| Pump Motor Power | 7.5Kw (10 HP) | |
| Rotation Speed | 700RPM | 860RPM |
| EX Standard | ExdIIBt4 / IEC EX/ ATEX | |
| Suction Line Size | 6 Inch | |
| Output Size | 8 Inch | |
| Weight | 1730kg | 1870kg |
| Dimension: L×W×H | 2100×1605×1729mm | |

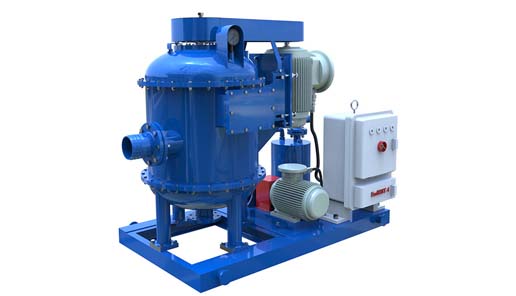

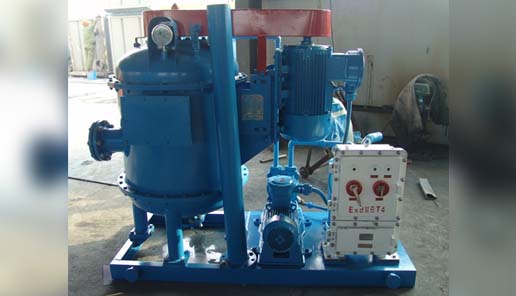

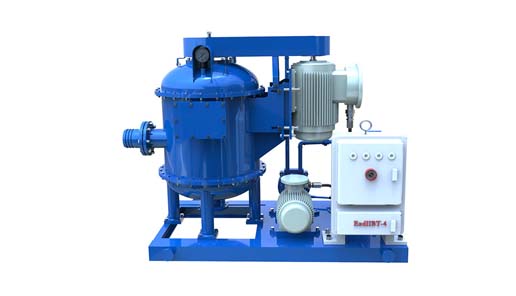

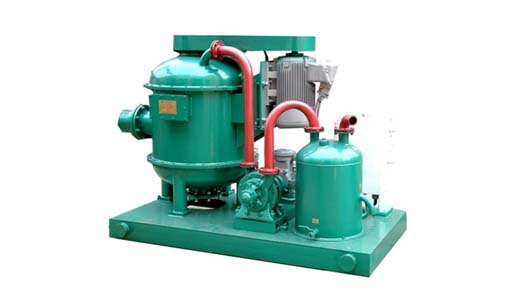

Vacuum Degasser is adapted to get rid of various cut-in gases in the drilling fluids. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Therefore, it works as one type mud cleaning equipment. As it is placed after the shale shaker, so we call it second stage mud cleaning equipment in mud recycling system. At the same time vacuum degasser can be used as a heavy-power agitator.
Learn More Petroleum Resources
Buyer’s Guide
Please send us your inquiry with detail item description or with Model number. If there is no packing demand we take it as our regular exported standard packing. We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
We can give you really high quality products with competitive price. We have a better understanding in Chinese market, with us your money will be safe.
Get Quick Response
Lake Petro is located in Dongying City, which is famous for Shengli Oilfield and the largest manufacturing hub of petroleum equipment in China. Following the principle of “quality first, science and technology innovated, people oriented”, every Lake Petro person is sparing no effort to provide the customers with best products and services. Our products are based on advanced production line and testing equipment, our products are designed and manufactured according to certification of API, ISO, GOST, etc.
