Weight Indicator
- Can be used the drilling rig, workover drilling rig etc.
- Hydraulic and electrical.
- Two types: horizontal and vertical.
- Easy to operate.
- Technical Specification
- Description
- Contact Us
| Deadline Model | Weight indicator
Model |
Max. Deadline Pulling Force
(kN) |
Qty of the line | Capacity
(kN) |
Output pressure sensor
(MPa) |
|
|
Vertical |
JZG42 | JZ500 | 420 | 12 | 5040 | 6 |
| 10 | 4200 | |||||
| JZG35 | JZ400 | 350 | 12 | 4200 | ||
| 10 | 3500 | |||||
| JZG24 | JZ250 | 340 | 10 | 2880 | ||
| 8 | 2400 | |||||
| JZG20 | JZ200 | 200 | 10 | 2000 | ||
| 8 | 1600 | |||||
| JZG18A | JZ150A | 180 | 10 | 1800 | ||
| 8 | 1440 | |||||
| 6 | 1080 | |||||
| JZG15A | JZ100A | 150 | 6 | 1200 | ||
| 4 | 900 | |||||
|
Horizontal |
JZG41 | JZ500A | 410 | 12 | 4920 | 6.83 |
| 10 | 4100 | |||||
| JZG34A | JZ400B | 340 | 12 | 4080 | 6 | |
| 10 | 3400 | |||||
| JZG18 | JZ150 | 180 | 8 | 1440 | ||
| 6 | 1080 | |||||
| JZG15 | JZ100 | 150 | 8 | 1200 | ||
| 6 | 900 | |||||
| JZG10A | JZ40 | 100 | 6 | 600 | ||
| 4 | 400 | |||||
| We can designed as your request. | ||||||

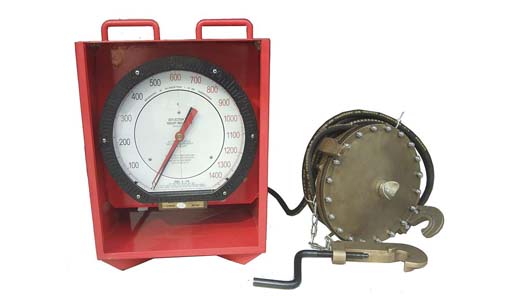

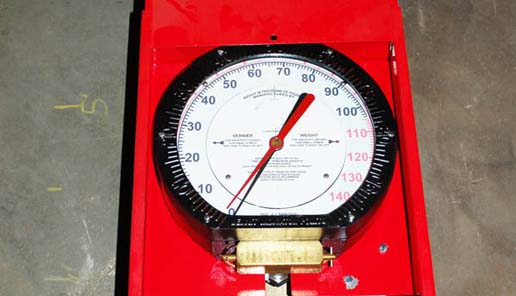

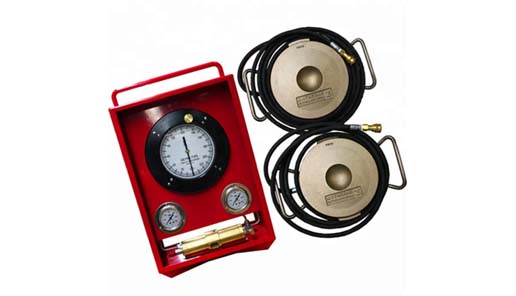

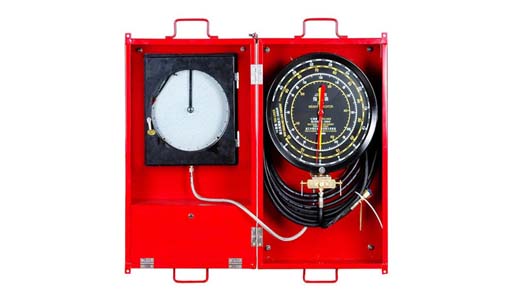

Weight indicator suitable for drilling and geological exploration drilling rig or workover process instructions and record the drilling hanging weight and WOB change, it can help drillers to master the working parameters and judge the working state of drilling tools. Weight indicator by the deadline anchor, weight secondary table (weight indicator and recorder).The instruments work environment temperature: -40~50℃
